S13 Suspension in a 510

Suspension, including wheel, tire and brake.
SR20DAT
Posts: 34
Joined: 05 Nov 2010 00:07
Location: Memphis TN

S13 Suspension in a 510

Post by SR20DAT » 05 Nov 2010 10:19

I am in the process of installing s13 rear suspension in my 510. For the rear wheels I have 18x10.5 et22 Volk Te37's. I mocked up the complete rear suspension with my flares and determined that the rear was 4 inches too wide. I made a jig to narrow the sub-frame. I am in the process of aligning everything and making shock mounts. Once that is complete I will mount it all square in the car. Has anyone else tried this? I talked to Dan at DGR and he said he narrowed one, but never installed it. I am also interested if anyone has converted the front suspension to s13 also. I am interested in converting to rack and I thought there might be a way to make the rest of the suspension fit.
Attachments

User avatar
Creepy Cruiser
Posts: 80
Joined: 06 Apr 2009 22:41
Location: 6 Feet Under

Re: S13 Suspension in a 510

Post by Creepy Cruiser » 05 Nov 2010 10:42

Cool!
This is why they call me Creepy.
The Creepy Cruiser ( My Bagged 65' Caddy Hearse), AND YES, "I DRAG THE HELL OUT OF IT." LOL. http://www.cardomain.com/ride/753364

User avatar
okayfine
Supporter
Posts: 14137
Joined: 12 Nov 2007 23:02
Location: Newbury Park, CA

Re: S13 Suspension in a 510

Post by okayfine » 05 Nov 2010 10:47

If you can do that with the rear suspension, the front should be cake.

There are threads on Ratsun about the S13 strut conversion. Not the same thing as using the entire S13 front suspension, but about as close as I've seen done. You'll also want to check out the Ecotec project build here on The Realm, as that's probably more in line with what you're looking for.
Because when you spend a silly amount of money on a silly, trivial thing that will help you not one jot, you are demonstrating that you have a soul and a heart and that you are the sort of person who has no time for Which? magazine. – Jeremy Clarkson

User avatar
defdes
Supporter
Posts: 5044
Joined: 12 May 2005 14:45
Location: Vermont

Re: S13 Suspension in a 510

Post by defdes » 05 Nov 2010 11:16

That rear end ought to be able to handle everything an L16 can throw at it.

SR20DAT
Posts: 34
Joined: 05 Nov 2010 00:07
Location: Memphis TN

Re: S13 Suspension in a 510

Post by SR20DAT » 05 Nov 2010 11:28

defdes wrote:That rear end ought to be able to handle everything an L16 can throw at it.
Yeah it probably would although it will never see an L16. I am putting in q45 rear running gear. The r200 vlsd and the super beefy q45 axles and hubs. I didn't think the stock 510 rear end would handle the power I wanted, and I didn't want to have to replace broken parts all the time.

indy510
Posts: 1467
Joined: 24 Aug 2007 14:40
Location: San Fransciso, CA

Re: S13 Suspension in a 510

Post by indy510 » 05 Nov 2010 13:17

.
Is that the ride height???? .......... or do you plan to lower it more???


I just don't understand why the flares are SO huge ......... you could tuck those wheels with BRE bubble flares

510rob
Moderator
Posts: 4715
Joined: 09 Oct 2003 23:37
Location: Vancouver, BC
Contact:

Re: S13 Suspension in a 510

Post by 510rob » 05 Nov 2010 13:31

A guy on Ratsun (username 'tiltnose510') did that swap, and Jeff posted many pictures...

http://community.ratsun.net/topic/1452- ... -rb26dett/

510rob
Moderator
Posts: 4715
Joined: 09 Oct 2003 23:37
Location: Vancouver, BC
Contact:

Re: S13 Suspension in a 510

Post by 510rob » 05 Nov 2010 13:33

so the pictures have a second anchor of existence...
Attachments

510rob
Moderator
Posts: 4715
Joined: 09 Oct 2003 23:37
Location: Vancouver, BC
Contact:

Re: S13 Suspension in a 510

Post by 510rob » 05 Nov 2010 13:34

pretty serious structural mods are needed to get the rear suspension into a 510, but then again, it's just steel that can be tamed by a welder, a cutter, a hammer, and a will.
Attachments

SR20DAT
Posts: 34
Joined: 05 Nov 2010 00:07
Location: Memphis TN

Re: S13 Suspension in a 510

Post by SR20DAT » 05 Nov 2010 13:39

indy510 wrote:.
Is that the ride height???? .......... or do you plan to lower it more???


I just don't understand why the flares are SO huge ......... you could tuck those wheels with BRE bubble flares
I have BRE flares for it. They do not work with my wheel tire combo. The OD of my wheels is much bigger than stock. Therefore the wheel well has to move up to accommodate. BRE flares keep the wheel well in the same location. They wider the outer lip, but do not give any additional clearance where the fllare meets the body. Its not at the exact ride height. And it looks way different in person.

Here's what it looked like with track rims and BRE flares. With this setup, I had like 1 in of travel till it hit the flare. And it looked like a monster truck.
Attachments
Dime 013.jpg
Dime 013.jpg (111.76 KiB) Viewed 8700 times

Pedro
Posts: 178
Joined: 02 Jun 2007 23:42
Location: Australia

Re: S13 Suspension in a 510

Post by Pedro » 06 Nov 2010 03:50

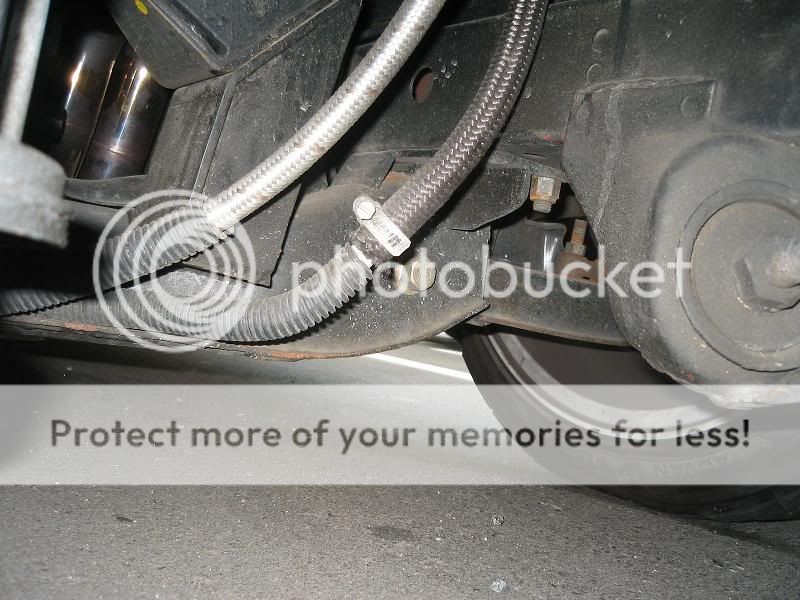

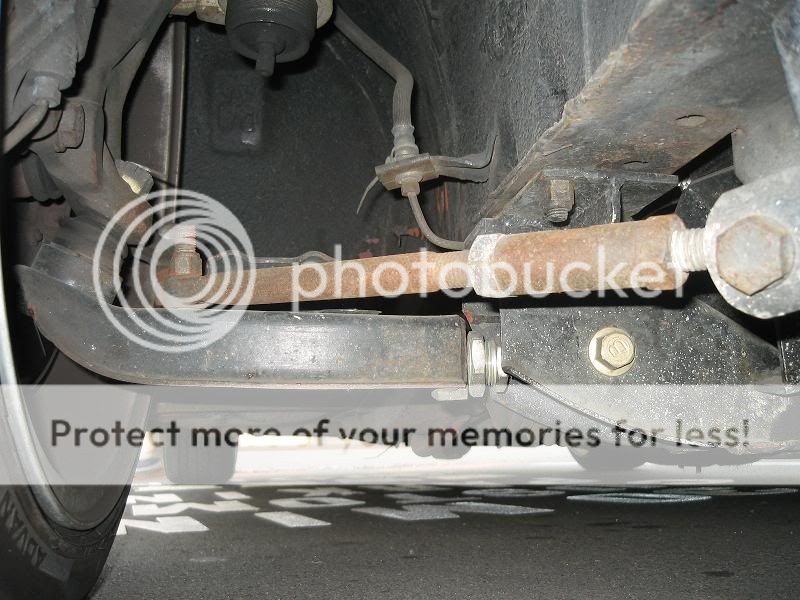

S13 front suspension in a 510, looks like they used the S13 front crossmember, cut and rose jointed control arms.


Can't see a sway bar in there though which is interesting. This was some jap car I found on the net btw.

User avatar
okayfine
Supporter
Posts: 14137
Joined: 12 Nov 2007 23:02
Location: Newbury Park, CA

Re: S13 Suspension in a 510

Post by okayfine » 06 Nov 2010 09:14

Tis not a 510 crossmember, either. Some rumors that a S13 crossmember would bolt to a 510 chassis. I had a spare but never confirmed it. Would still leave work to be done to narrow the track, which is probably the harder job.
Because when you spend a silly amount of money on a silly, trivial thing that will help you not one jot, you are demonstrating that you have a soul and a heart and that you are the sort of person who has no time for Which? magazine. – Jeremy Clarkson

cosmo1stgen
Posts: 68
Joined: 21 Jun 2008 12:20
Location: San Diego, CA

Re: S13 Suspension in a 510

Post by cosmo1stgen » 06 Nov 2010 10:20

I have the s12 crossmember and front suspension in my 510. Its a bit of work getting the geometry set up right as the cross member needs a lot of work to move it rearward in the chassis. The control arms are double sheer instead of single like the 510 and there almost 2 inches further forward which would increase caster quite a bit and locate the control arm too far forward in the wheel well. Ice house on this forum and on ratsun has done this a few times and is where I got the idea from. The s12 crossmember is narrower as is the rack than the s13. I have mine set up with the s12 front control arms narrowed, custom TC rods, shortened s12 strut housings and stock s12 brakes. If you must have an s13 front end you could do what the s12 guys do and use the s12 rack and crossmember in the 510 but use the s13 control arms and struts. You can find this info in a search it on clubs12. I think it would be a much better fit than using the complete s13 setup.

SR20DAT
Posts: 34
Joined: 05 Nov 2010 00:07
Location: Memphis TN

Re: S13 Suspension in a 510

Post by SR20DAT » 06 Nov 2010 11:24

cosmo1stgen wrote:I have the s12 crossmember and front suspension in my 510. Its a bit of work getting the geometry set up right as the cross member needs a lot of work to move it rearward in the chassis. The control arms are double sheer instead of single like the 510 and there almost 2 inches further forward which would increase caster quite a bit and locate the control arm too far forward in the wheel well. Ice house on this forum and on ratsun has done this a few times and is where I got the idea from. The s12 crossmember is narrower as is the rack than the s13. I have mine set up with the s12 front control arms narrowed, custom TC rods, shortened s12 strut housings and stock s12 brakes. If you must have an s13 front end you could do what the s12 guys do and use the s12 rack and crossmember in the 510 but use the s13 control arms and struts. You can find this info in a search it on clubs12. I think it would be a much better fit than using the complete s13 setup.
Thanks for the info. Will the sr20 bolt directly to a s12 cross member or does it have to be flipped like a 510?

cosmo1stgen
Posts: 68
Joined: 21 Jun 2008 12:20
Location: San Diego, CA

Re: S13 Suspension in a 510

Post by cosmo1stgen » 06 Nov 2010 11:57

The s12 crossmember is already set up for front sump no need to flip it and sr20 motor mounts will bolt right up. But because the crossmember needs to be moved back on the chassis to center the control arms the motor mounts on the crossmember must be moved forward to accommodate. Unless you want your engine rubbing the firewall. :D
