Re: New swap-4G63T

Post by PoorMtnKid » 21 Sep 2018 19:36

I had the same issues with my 300zx mod now sealing. I eventually had a shop here in town build a new tank with a sump and an external pump. When I had the 300 with stock tank I had huge starvation issues at half tank while at the track on long left hand turns. So it was either that or have fuel spill out because of not sealing properly..... I eventually had a shop build me the tank, it was around $650 for them to built it. It now has external pump which is a little loud but I did seal off the back seat to help.
looking for pass. side arm rest

User avatar
jeffball610
Posts: 288
Joined: 15 Sep 2006 14:12
Location: Las Vegas, NV

Re: New swap-4G63T

Post by jeffball610 » 01 Jan 2019 19:25

I made a little video of the install of my T3 coilovers and camber plates. I have an issue keeping me from running the camber plates that hopefully T3 can help me resolve.

https://youtu.be/5OFmkmyjRK8
1972 Datsun 510
7-bolt 4G63T, EVO 9 pistons & rods, Garrett GT3076R, "Flipped" Stock Intake Manifold, Toyota R154, Z31 R200 w/ CVs

User avatar
jeffball610
Posts: 288
Joined: 15 Sep 2006 14:12
Location: Las Vegas, NV

Re: New swap-4G63T

Post by jeffball610 » 13 Jan 2019 16:34

A short dash cam video from today. Getting loose in 2nd gear and never going faster than 45mph.

https://youtu.be/3lVN6q4R490
1972 Datsun 510
7-bolt 4G63T, EVO 9 pistons & rods, Garrett GT3076R, "Flipped" Stock Intake Manifold, Toyota R154, Z31 R200 w/ CVs

User avatar
jeffball610
Posts: 288
Joined: 15 Sep 2006 14:12
Location: Las Vegas, NV

Re: New swap-4G63T

Post by jeffball610 » 27 Jan 2019 20:04

So, #4G63510 made it to its first road course event.


I was very worried about the brakes after my B210 booster install. They're still not great, but I felt safe enough to be on course.


My Tomei R200 1.5 way LSD worked great. I could definitely feel that the car was putting power down to both rear tires. No drama or lag from spinning one tire.

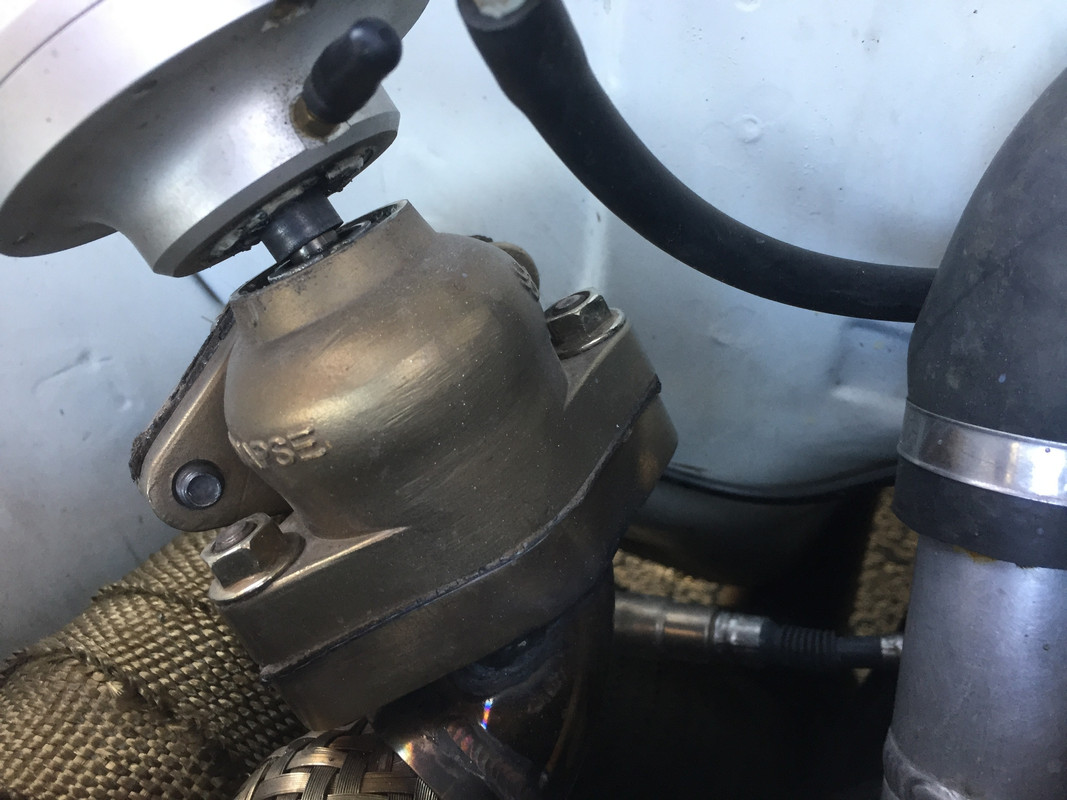

The car ran great and I was easily keeping up with Miatas in the turns and staying with higher horsepower cars on the straights. I have a lot to learn about driving, but the car did well. That is until the last session. I was not feeling the power that I had all day and took a peak at my boost gauge on the straight. I was only making 5psi at 5k RPM instead of 10+psi. After I pulled into the pit area I took a peak at all of my vacuum lines and such in case there was a leak, and then I noticed this:


I'm pretty sure it's not supposed to do that. It's disappointing that a part that is considered high quality would do that. It also seems like an odd failure in general. Thankfully it was the last session, and I was able to drive home. Overall it was a success and I can't wait for the next event.
1972 Datsun 510
7-bolt 4G63T, EVO 9 pistons & rods, Garrett GT3076R, "Flipped" Stock Intake Manifold, Toyota R154, Z31 R200 w/ CVs

User avatar
JordanTr
Posts: 920
Joined: 20 Feb 2013 22:27
Location: Langley, BC, Canada

Re: New swap-4G63T

Post by JordanTr » 29 Jan 2019 19:45

Congrats on getting a track day under your belt! Some follow up work required but there are certainly guys out there worse off.

I stumbled upon this 4G63 tidbit today... 6.20 1/4 mile and 1HP/cc! https://youtu.be/Quk8HYRHgGI
Jordan | '72 2 door KA project | '94 240sx RB26DETT | '97 Silvia RB25DET | '90 Audi 90 Quattro 20V (DD)

User avatar
jeffball610
Posts: 288
Joined: 15 Sep 2006 14:12
Location: Las Vegas, NV

Re: New swap-4G63T

Post by jeffball610 » 13 Feb 2019 20:59

Here are 2 laps from that days road course event. I know I'm not fast, and I have a LOT to learn, but it was a blast.
https://youtu.be/qMamRaQwbQs

On a side note, the waste gate just had the screws come loose. Thankfully it's an easy(ish) fix, but it will likely happen again.
1972 Datsun 510
7-bolt 4G63T, EVO 9 pistons & rods, Garrett GT3076R, "Flipped" Stock Intake Manifold, Toyota R154, Z31 R200 w/ CVs

User avatar
bertvorgon
Supporter
Posts: 10921
Joined: 04 Aug 2003 20:45
Location: White Rock, B.C. Canada

Re: New swap-4G63T

Post by bertvorgon » 14 Feb 2019 07:24

What brand is that Waste gate?
"Racing makes heroin addiction look like a vague wish for something salty" - Peter Egan

Keith Law
1973 2Door Slalom/hill climb/road race / canyon carver /Giant Killer 510
1968 Vintage 3HP Mini Bike
1971 Vintage 13' BOLER trailer

User avatar
jeffball610
Posts: 288
Joined: 15 Sep 2006 14:12
Location: Las Vegas, NV

Re: New swap-4G63T

Post by jeffball610 » 14 Feb 2019 11:39

bertvorgon wrote:
14 Feb 2019 07:24
What brand is that Waste gate?
It's a Synapse Engineering unit. It really is a quality unit, but the use of screws and loc-tite to hold it onto a searing hot part probably isn't the best. They were quick to let me know what the issue was with the unit, but did not provide any directions on disassembly or reassembly. I'm hoping the toque specs of "good-n-tight" will work. They even sell a "rebuild" kit that has seals and oil, but I can't find any info on actually rebuilding it.

I'll have a chance to test it out a bit this Sunday at the next autocross event. I'll also see how the brakes are holding up. I haven't driven the car much since that event since it's too cold to drive without a heater 😋
1972 Datsun 510
7-bolt 4G63T, EVO 9 pistons & rods, Garrett GT3076R, "Flipped" Stock Intake Manifold, Toyota R154, Z31 R200 w/ CVs

User avatar
icehouse
Posts: 3458
Joined: 17 Jul 2005 17:06
Location: Everett Wa

Re: New swap-4G63T

Post by icehouse » 14 Feb 2019 12:37

Cool to see it on the track!
"People don't like it when shit doesn't match their rule of thumb." Sam

User avatar
bertvorgon
Supporter
Posts: 10921
Joined: 04 Aug 2003 20:45
Location: White Rock, B.C. Canada

Re: New swap-4G63T

Post by bertvorgon » 14 Feb 2019 15:05

If that waste gate turns out to be a pain in the ass, The Turbonetics ones are great..ZERO issues and well designed.

That mounting looks "standard".

http://www.turboneticsinc.com/performan ... -wastegate

You can see the "heat sink" for the valve stem and the diaphragm body is well up and away from the heat and the body it self goes up high, so the screws that hold the lid and diaphragm in place are isolated from heat. I have never lost a diaphragm and only wear them out after years and years of use.
Attachments
IMGP8201 (Large).jpeg
Turbonetics
IMGP8201 (Large).jpeg (321.06 KiB) Viewed 981 times
"Racing makes heroin addiction look like a vague wish for something salty" - Peter Egan

Keith Law
1973 2Door Slalom/hill climb/road race / canyon carver /Giant Killer 510
1968 Vintage 3HP Mini Bike
1971 Vintage 13' BOLER trailer

User avatar
jeffball610
Posts: 288
Joined: 15 Sep 2006 14:12
Location: Las Vegas, NV

Re: New swap-4G63T

Post by jeffball610 » 21 May 2019 19:44

It's been a while since I've updated this. I've been fighting some issues. I've got the whole chassis rewired with Deutsch connectors. Swapped in a 7/8" MC with the booster, and then without the booster. I'm still fighting braking issues. None of that stops me from taking the car out to autocross and have fun. Here is a run from the May 19th session.
https://youtu.be/N8vES_FLiSE
I ran a 48.873 this run with a cone. I ran a 48.501 earlier in the day without video. My co driver ran a best of 45.483 and the top driver in an Alfa 4c had a 41.4 second run.

I'll be posting various "help" threads for specific issues I'm having. I've been posting inside of other's threads and I feel like I'm hijacking what the original topic is. If there is an issue with my multiple posts, please let me know.
1972 Datsun 510
7-bolt 4G63T, EVO 9 pistons & rods, Garrett GT3076R, "Flipped" Stock Intake Manifold, Toyota R154, Z31 R200 w/ CVs

User avatar
bertvorgon
Supporter
Posts: 10921
Joined: 04 Aug 2003 20:45
Location: White Rock, B.C. Canada

Re: New swap-4G63T

Post by bertvorgon » 21 May 2019 20:30

Ask away, we are here to help. It is good that your co-driver showed there is time in the car as far as you are concerned, that is good. I will watch your run...that is always hard as MY seat is NOT feeling what you are in terms of grip and other subtleties of how your car is handling.

If there is a faster driver, with more experience, that you trust...let them drive your car...YOU watch...see how they do.

One of the best things ever did was watch a good driver, drive my car, put some good time on me, and offer feedback as to what might or might not be an issue.

Will be back.
"Racing makes heroin addiction look like a vague wish for something salty" - Peter Egan

Keith Law
1973 2Door Slalom/hill climb/road race / canyon carver /Giant Killer 510
1968 Vintage 3HP Mini Bike
1971 Vintage 13' BOLER trailer

User avatar
jeffball610
Posts: 288
Joined: 15 Sep 2006 14:12
Location: Las Vegas, NV

Re: New swap-4G63T

Post by jeffball610 » 27 Jun 2019 09:49

After the Powerland show, I thought it would be a good idea to add a list of the parts my car is made up of. We were having discussions about how many different cars parts make up each of our projects, and I thought I'd write it all down. My best guess is about 28 different car models make up my current build. Here is a list of the current parts. I'll update this over time to keep it accurate and relevant.
https://docs.google.com/document/d/16KM ... sp=sharing
1972 Datsun 510
7-bolt 4G63T, EVO 9 pistons & rods, Garrett GT3076R, "Flipped" Stock Intake Manifold, Toyota R154, Z31 R200 w/ CVs

User avatar
icehouse
Posts: 3458
Joined: 17 Jul 2005 17:06
Location: Everett Wa

Re: New swap-4G63T

Post by icehouse » 28 Jun 2019 17:21

Did you get the new brake pads installed yet?
"People don't like it when shit doesn't match their rule of thumb." Sam

User avatar
jeffball610
Posts: 288
Joined: 15 Sep 2006 14:12
Location: Las Vegas, NV

Re: New swap-4G63T

Post by jeffball610 » 08 Jul 2019 20:49

icehouse wrote:
28 Jun 2019 17:21
Did you get the new brake pads installed yet?
I did, but they only have a few miles on them since the motor is down. I had a rough idle after my trip, and it turns out I have low compression in cylinder #4 due to an exhaust valve leak. Time to rebuild the head, but I'm out of town for vacation, so it's on the back burner.
1972 Datsun 510
7-bolt 4G63T, EVO 9 pistons & rods, Garrett GT3076R, "Flipped" Stock Intake Manifold, Toyota R154, Z31 R200 w/ CVs
